Dongguan Bell Experiment Equipment Co.,LTD
Professional manufacturer of environmental simulation testing equipment !
Add to Cart
Sand Dust Test Equipment
Specifications- sand dust test equipment
1.Factory direct sale
2.Certificate:ISO
3.Can be customized
4.Good after-sale service
5.Warranty: 12 months
Features- sand dust test equipment
1. Widely used in mechanic, electric product, electronic fields to test the reliability in dust resistance.
2. With large the observation window to monitor the test.
3. With high precision perfect external design and internal with SUS#304 high stainless steel
4. Control system with high precision PID digital display and high temperature protector.
Standard Compliance- sand dust test equipment
GB/T 2423.37-2006
GB4208-2008
GB/T4942.1-2001
GB11564-2008
GB7000.1-2002
IEC60598-1:1999
GB/T10485-2008
Applications - sand dust test equipment
Sand dust tester is designed and manufactured to test the sand and dust resistance for all kinds of auto parts in the production, transportation, storage, widely used to test the sealing of automotive light, instrument, electrical dust cover, steering system, door lock and so on.
Parameters- sand dust test equipment
| Model | BE-XR-800 | BE-XR-1000 |
| Internal dimension | W800*H800*D800 | W800*H800*D800 |
| Metal mesh diameter | 50um | |
| Screen stencil diameter | 75um | |
| Talcum powder dosage | 2Kg/m³ | |
| air velocity | No more than 2m/s | |
| Talcum powder dosage | 2kg/ m³ | |
| Internal material | sus304 stainless steel | |
| External material | A3 plate plastic spraying powder | |
| Door | tempered glass door | |
| Power | AC 220V 50Hz | |
| Total power | 3.0KW | |

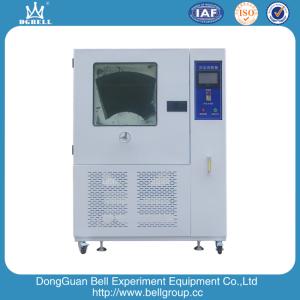

Sand dust test equipment Picture for Reference
Packages- sand dust test equipment
In Standard Export Plywood Case for sand dust test equipment
Protect it from water during the long time shipping with the plastic film.and protect its corners with the foam.
After sale service- sand dust test equipment
We will reply within 24 hours for your calling or email ,We can offer the engineer to the overseas for repairing if you required,but you have to pay for his tickets and accommodation
Warranty- sand dust test equipment
One year for the machine.
Each batch of parts is done quality sampling inspection before into the warehouse,and Each product before delivery is tested by the national authoritative third-party inspection agency.
Our Factory
DongGuan Bell Experimental Equipment Co.,Ltd
DongGuan Bell Experimental Equipment Co.,Ltd allocates itself in DongCheng District Dong Guan City Guagndong Province, a high-tech enterpise specilized in environmental equipment R&D, manufacturer and covers an areas of more than 10000 square meters with its registered capital up to 500,00,000 RMB and annual throughtout up to more than 0.1 billion RMB. Bell boost a team that consists of more than 120 employees and 60 of them with college educated background and 15 of them with senior engineer qualification.
To meet manufacturing demand, Bell was introduced with the facilities such as advanced CNC shearing machine, bending machine, punching machine, laser welding machine etc. meanwhile, Bell recruited a large number of talents in R&D, manufacturing, most of them are capable to design, manufacture and install large size testing machine.
Bell utilized its independent R&D competence in mechanical and software engineering to product testing machines that wide applied in Scientic Institute, aerospace, military, electronic, electric, toy, paper works, hareware, battery, communications and assure the machine to meet the relevant standards regarding to environmental test and mechanical test such as GB, GJB,IEC, ISO, IEC, MIL,DIN, CE etc.
